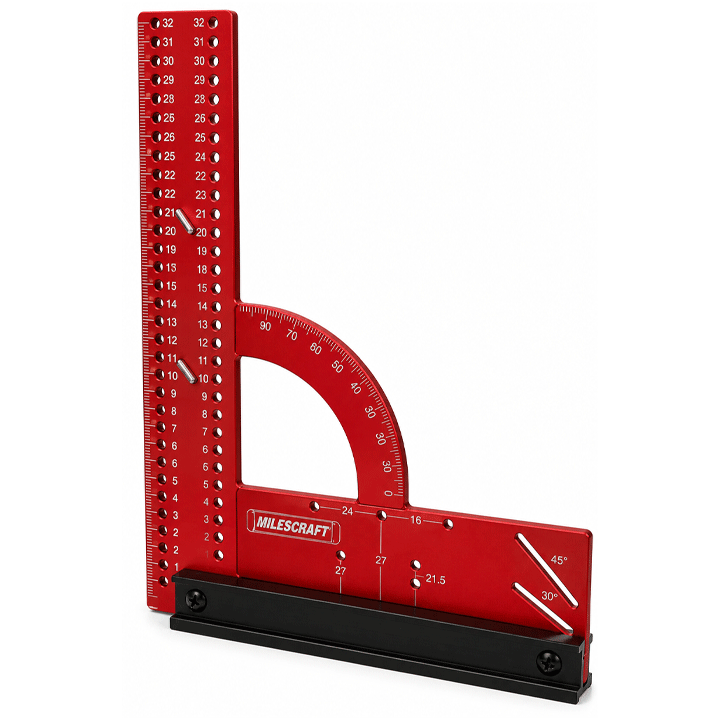

The multi-functional MC-Square3000 is the perfect measuring and marking reference tool for precise woodworking, remodeling and many other applications. With the built-in easy-to-read angle, you can also mark 30-degree and 45-degree angles. Need to draw a circle? This square can do it too, just remove the fence and secure the square with a nail or screw.
Sturdy, lightweight, aluminum body
Inner and outer scales for measuring and marking the inside and outside of your workpiece
300mm square with 10mm notch spacing
Two quick angle finders for 30° and 45° angles
Elongated notches for precise line marking
3mm thick anodized aluminum material
Three holes spaced 32mm and 37mm from the edge for rack pin arrangement
Hole for arrangement of standard 26mm and 35mm hinge cups
Marking holes for Rafix 20 system and Rafix 20 system with pin
Aluminum Fence
Can be removed to square plane your workpiece or to draw circles
