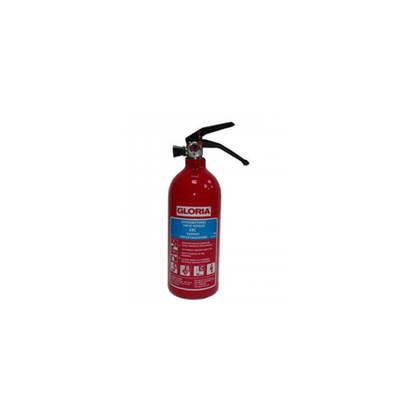

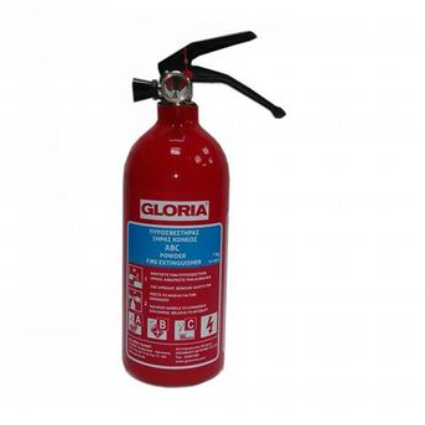

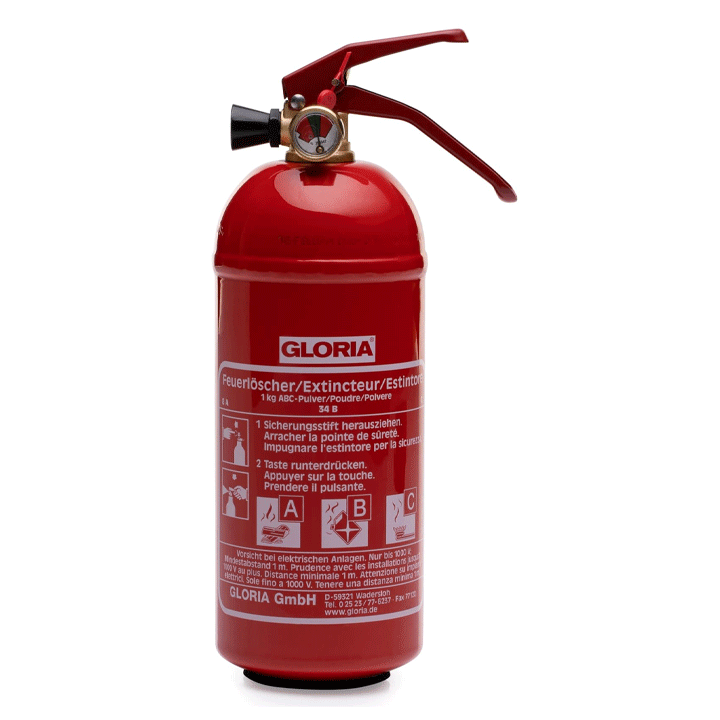

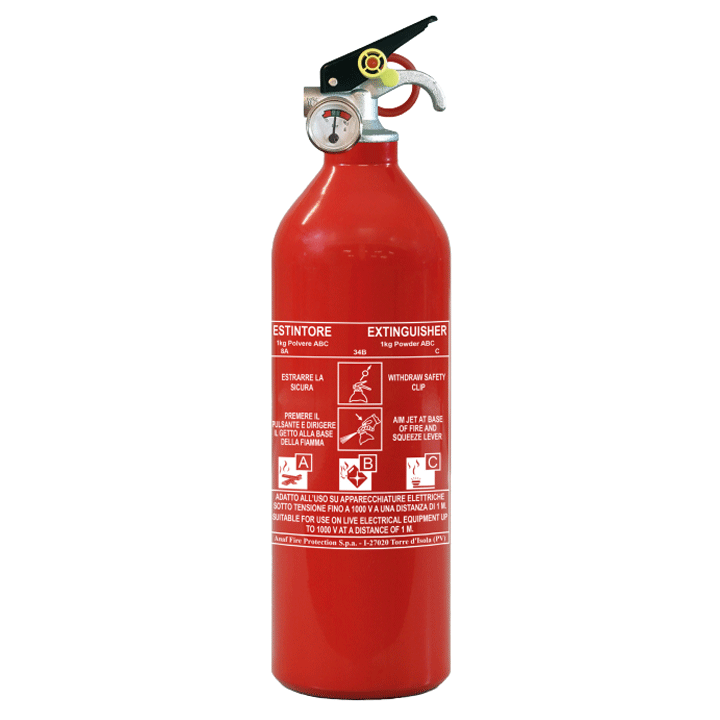

FIRE EXTINGUISHER POWDER 1KG ABC ANAF EN3

MODEL: PS1-XM TOP INT ING ‘

FIRE RATINGS: 8A 34B C

CHARGE: 1 kg ± 5%

PROPELLANT: Nitrogen or nitrogen + helium

EXTINGUISHING AGENT: ABC Powder

DISCHARGE: Discharge time : ~ 7 s

CYLINDER: Material of construction : Aluminium alloy

Manufacturing process : Deep drawing

External painting : Polyester resin, minimum thickness 75 micron

Corrosion resistance : 480 h minimum according to ISO 9227:1990

PRESSURE: Operating pressure, 20 °C : 9 bar

Operating pressure, 60 °C : 11 bar

Operating pressure, –30 °C : 6 bar

DIMENSIONS: Overall height : 297 mm

Bottle OD : 82 mm

WEIGHT: Empty / Charged: 0,33 kg / 1,33 kg

PACKING SPECIFICATIONS: Standard packing : 6 pieces cardboard box

Carton size : B x L x H : 265 x 200 x 320 mm

Weight per carton : 8,5 kg

Pc/Pallet : 90 cartons (540 pieces)

Pallet size : B x L x H : 800 x 1200 x 1745 mm

Pallet volume : 1,68 m3

Weight per pallet (net/gross): 769 kg / 789 kg
