DOUBLE OUTDOOR SWITCH 2 WAY 20AX IP66 RATED

Product Description:

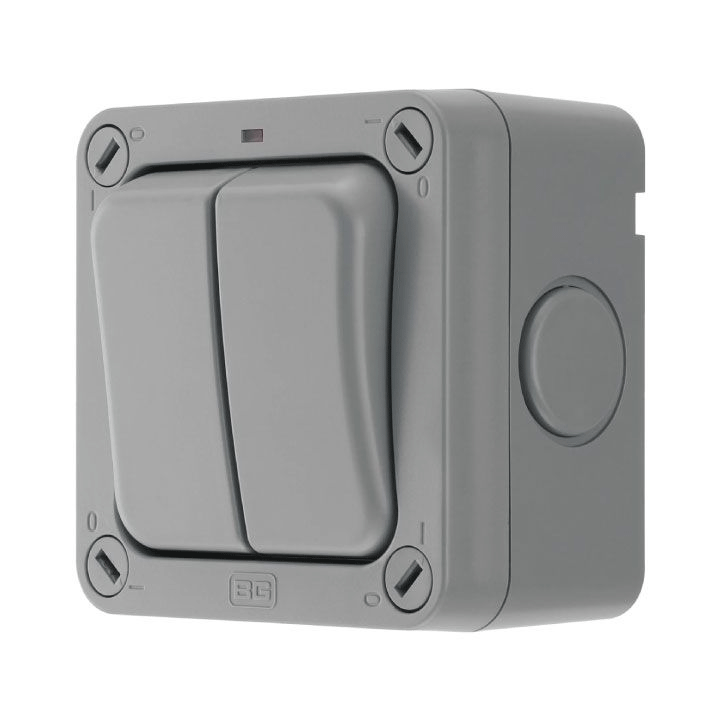

BG Electrical Double Outdoor Switch – 2 Way, 20AX, IP66 Rated
The BG Electrical Double Outdoor Switch is a robust and weatherproof solution designed for safe and reliable outdoor power control. With an IP66 rating, it ensures protection against dust and strong water jets, making it ideal for gardens, patios, garages, and other outdoor environments.

Features:

IP66 Rated – weatherproof and dustproof, suitable for outdoor use.
20AX Inductive Rated – supports inductive loads, ensuring durability.
2-Way Switching – enables control of lighting circuits from two different locations.
LED Indicator – optional illumination, configurable to light up when ON or OFF.
Positive Rocker Action – provides a firm and reliable switch response.
Fast-Fix Design – no separate screws or covers, quick and easy installation with 150° rotation.
Clearly Marked Terminals – with backed-out captive screws for simple wiring.
Modular Housing – compatible with alternative switch modules from the BG Grid range.
Flexible Cable Entry – 5 entry options with M25 capability, plus 1 drill-out entry (20/25mm) on rear face.
Earth Terminal – provided in the mounting box for safe grounding.

Technical Data:

Double Outdoor Switch
Switch Type: 2-Way
Current Rating: 20A (20AX inductive)
Ingress Protection: IP66
Material: Robust weatherproof housing
Cable Entries: 5 gland entry positions (M25) + 1 rear drill-out entry (20/25mm)
Indicator: LED (configurable)
Compatibility: Accepts BG Grid range switch modules
Installation: Captive screws, push-out blank plugs, fast-fix design
